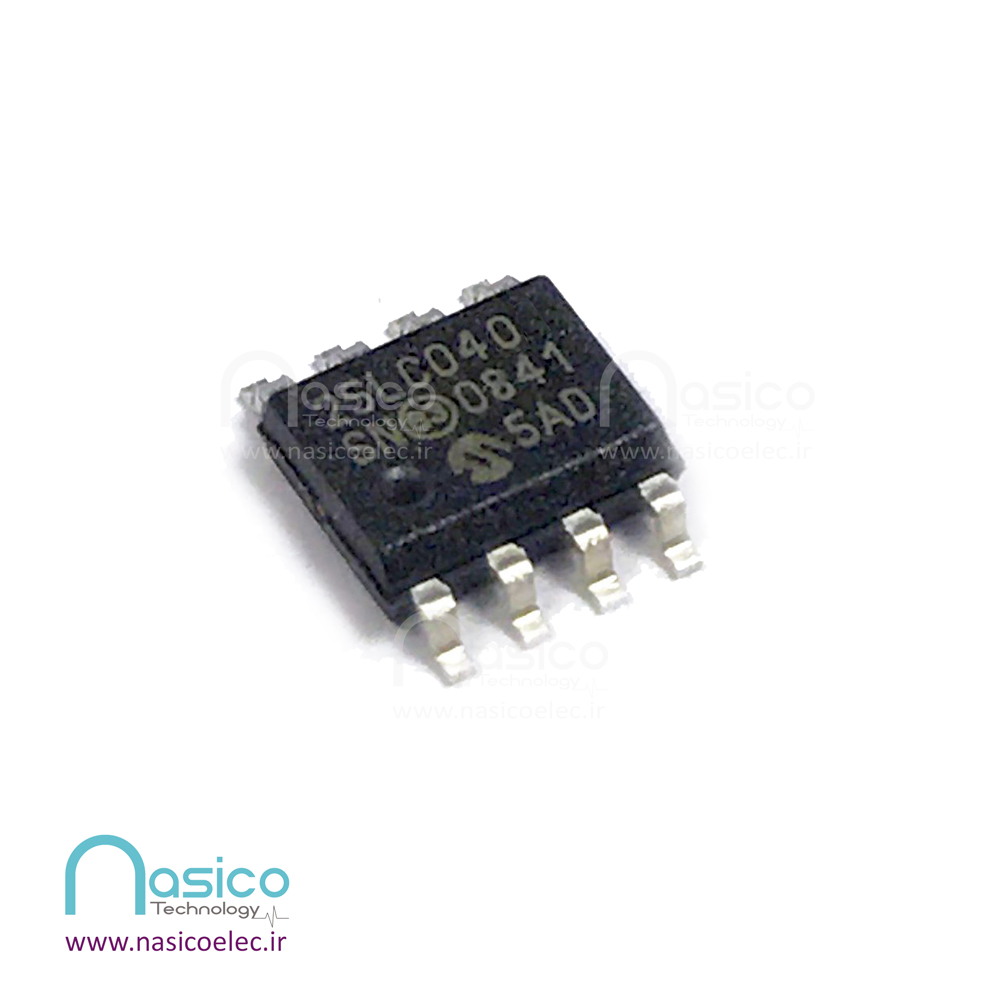

آی سی AT25LC040

آی سیAT25LC040

کاتالوگ محصول : دیتاشیت آی سی AT25LC040

4K 2.5V CMOS Serial EEPROM Product Brief

 The Microchip Technology Inc. 25LC040 is a 4K bit Serial Electrically Erasable PROM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a chip select (CS) input, allowing any number of devices to share the same bus.

Features

• 3 MHz Clock Rate
• Single supply with programming opeeration down to 2.5V
•  Low Power CMOS Technology

- Max Write Current: 5 mA

- Read Current: 500 µA at 5V, 3MHz

- Standby Current: 1 µA

• 512 x 8 Organiz
• 16 Byte Page
• Self-timed ERASE and WRITE Cycles
• Block Write Protection
