آی سی A2C20219

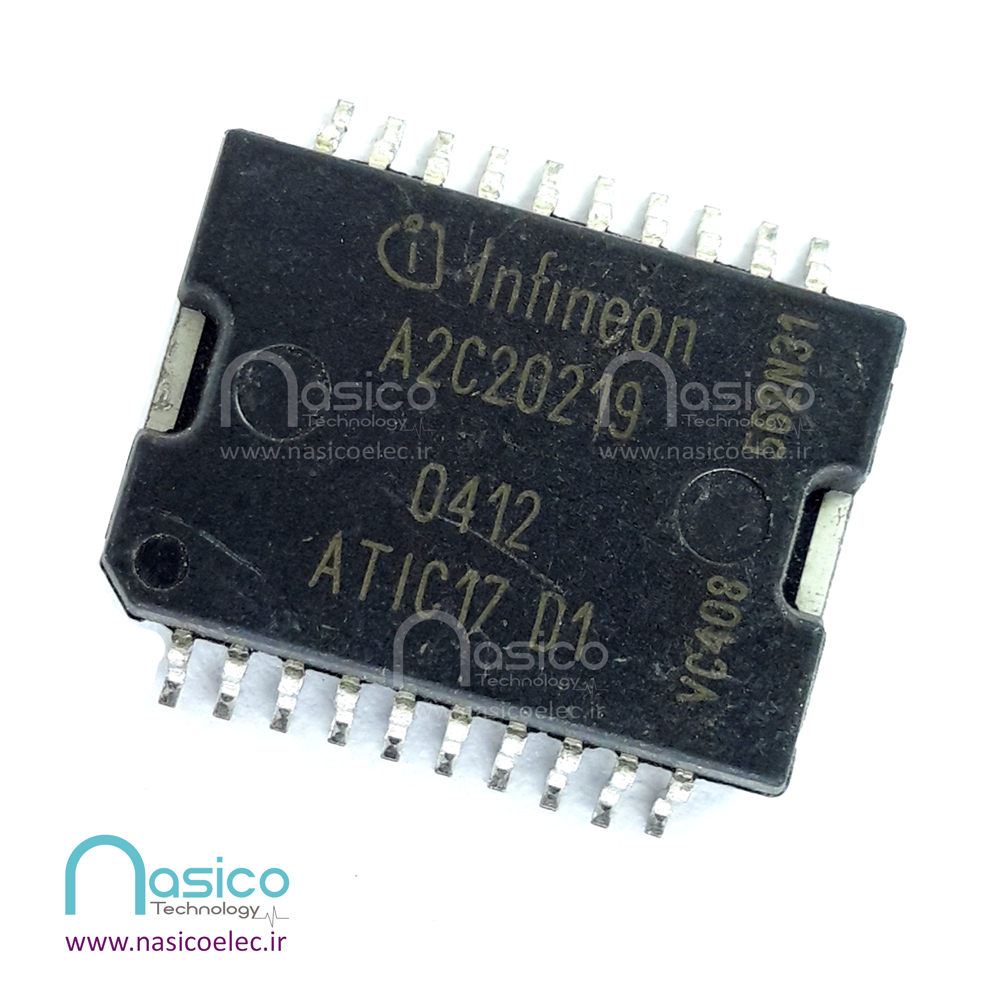

آی سی A2C20219 ATIC17

این رگولاتور در ایسیو زیمنس ریو و همچنین mvm110 استفاده می گردد . مشابه این قطعه آی سی های A2C33648  و TLE4471 می باشد.

کاتالوگ محصول: دیتاشیت آی سی A2C20219

Triple Voltage Regulator

The  A2C20219 is a monolithic integrated very low-drop triple voltage regulator. The main output supplies loads up to 450 mA and the additional tracked outputs can provide up to 50 mA and 100 mA. In addition the device includes a watchdog for microcontroller-supervision, an under-voltage reset, a power on reset and extended enabling features. The watchdog and reset timing can be chosen independently of each other. The A2C20219 is available in the P-DSO-20-12 power package. It is designed to supply microprocessor systems under the severe condition of automotive applications and therefore it is equipped with additional protection against overload, short circuit and overtemperature. Of course the A2C20219 can be used in other applications as well. The A2C20219 operates in the temperature range of Tj = – 40 to 150 °C.

Feature

• Triple Voltage Regulator
• Triple Voltage Regulator
• Output Voltage 5 V with 450 mA Current Capability
• Two tracked Outputs for 50 mA and 100 mA
• Enable Function for main and tracked Output(s)
• Reset with adjustable Threshold
• Undervoltage- and Power On-Reset
• Watchdog
• Independent Watchdog- and Resetdelay
• Wide Temperature Range
• Overtemperature Protection
• Overvoltage Protection
